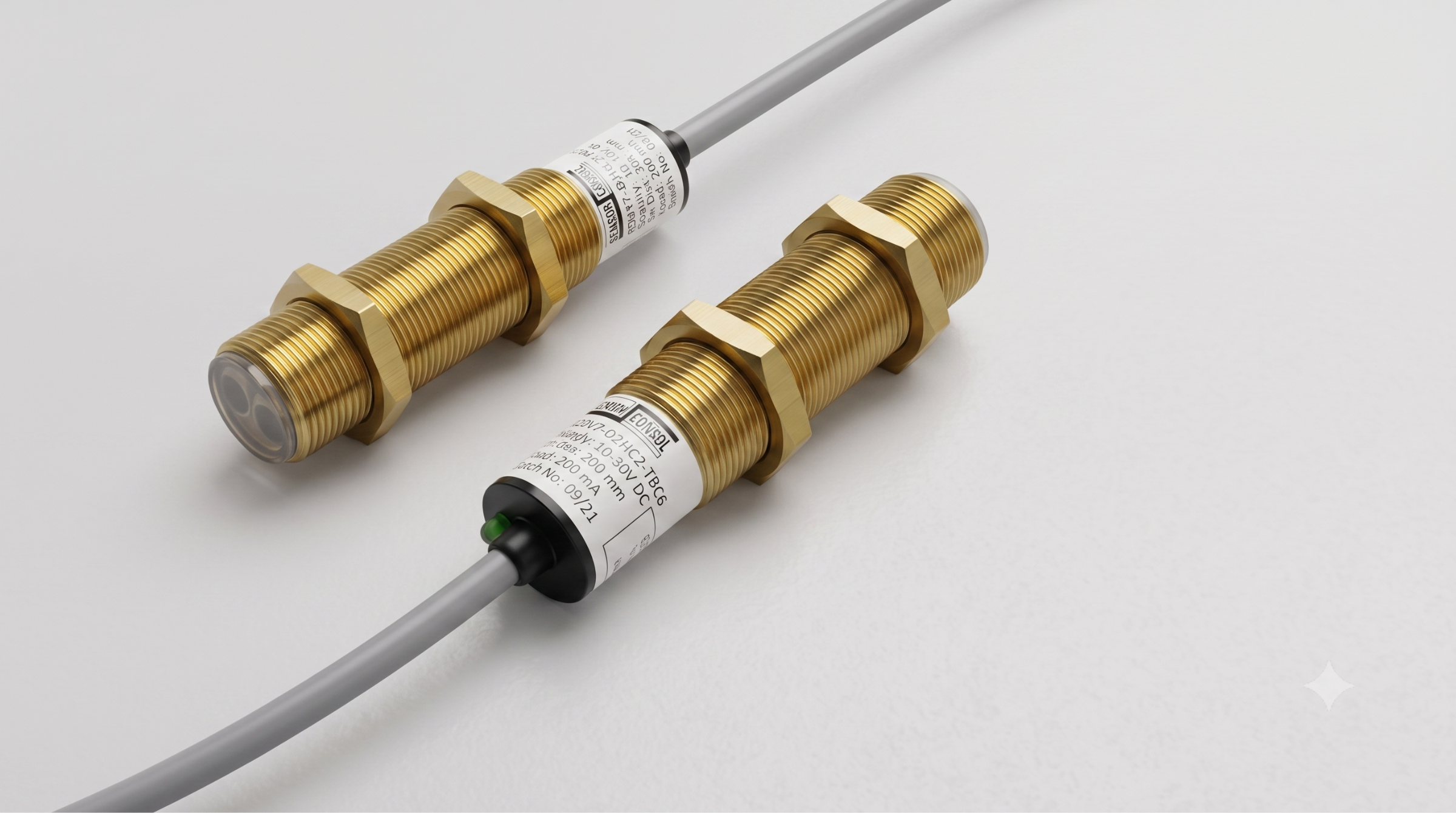

Photoelectric Sensor, Diffuse Scan M18
Diffuse Type Photoelectric Sensor series PDx from SensorConsol is rugged design for various industrial applications. Designed in India for global markets, this sensor is CE marked for sale in Europe.
- ModelPDxV7-D2HC2-TBC6
- BrandSensorConsol
- CategoryPhotoelectric Sensors
Diffuse Type Photoelectric Sensor series PDx from SensorConsol is rugged design for various industrial applications. Designed in India for global markets, this sensor is CE marked for sale in Europe. For use in Hazardous Area, we provide Cat III ATEX compliant versions for use in Zone 2.
These sensors are available in 3WDC or 4WDC configurations.
| Operating Voltage | 10-30V DC |
|---|---|
| Sensing Range Sd | 200 mm |
| Output Current Capacity | 200 mA |
| Construction | Barrel type M18 x 1P x 80L Nickel Plated Brass |
| Sensing Head | Shielded |
| Ingress Protection | IP-67 |
| PD3V7-D2HC2-TBC6 | Diffuse scan, PnP NO, 3W DC, 200 mm sensing range |
|---|---|
| PD4V7-D2HC2-TBC6 | Diffuse scan, PnP NC, 3W DC, 200 mm sensing range |
| PD5V7-D2HC2-TBC6 | Diffuse scan, NpN NO, 3W DC, 200 mm sensing range |
| PD6V7-D2HC2-TBC6 | Diffuse scan, NpN NC, 3W DC, 200 mm sensing range |
| PD7V7-D2HC2-TBC6 | Diffuse scan, PnP NO+NC, 4W DC, 200 mm sensing range |
| PD8V7-D2HC2-TBC6 | Diffuse scan, NpN NO+NC, 4W DC, 200 mm sensing range |
Features
- Diffuse Scan principle of operation
- Electrical protections reverse polarity & short circuit.
- Sensitivity Arrangement by trimpot
- LED indication for object status
Applications
Conveyor Systems: Counting, sorting, or detecting the presence of boxes, packages, and products moving along production lines where space is tight and installing a separate reflector or receiver is difficult.
Automated Plumbing: Controlling touch-less public restroom fixtures, such as automatic faucets, soap dispensers, and flush valves, where a user's hands act as the reflecting surface.
Packaging and Assembly: Verifying the presence of small parts, labels, or caps on assembly lines where fast response times are critical.
Material Handling and Robotics: Detecting parts in pick-and-place operations or stopping robotic arms when an object reaches a specific position.
Smart Home & Building Automation: Managing automatic doors, security zones, or lighting controls that trigger when a person moves into a specific detection area.
Sorting by Contrast: Utilizing specialized contrast-sensitive diffuse sensors to distinguish between dark and light items on a shared processing line.
