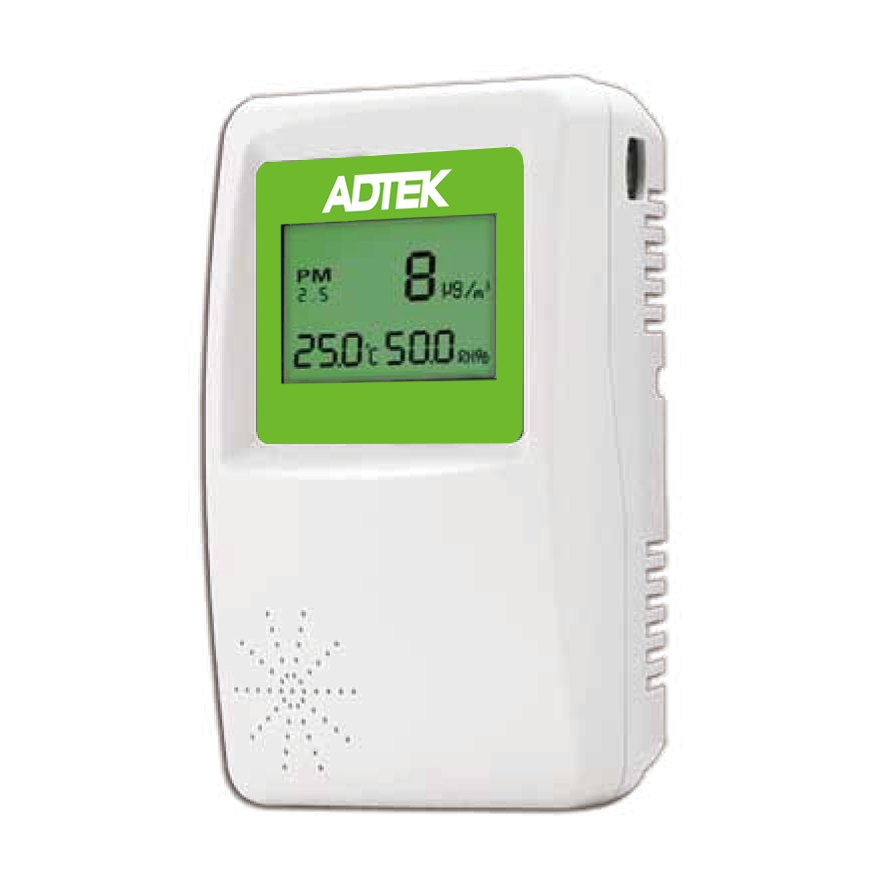

HTA Temperature/Humidity & PM2.5/PM10 Transmitter

Model HTA · ADTEK

HTA transmitter measures temperature, humidity, particulate matters 2.5 micron and 10 micron. It provides output in the form of RS485 MODBUS or 1 set of Analog Output.

Price on request

ModelHTA
BrandADTEK
CategoryEnvironmental Sensors

Request a quote Datasheets (1)

HTA series environmental sensor is useful to measure temperature, humidity as well as particulate matters of sizes 2.5 micron and 10 microns. These are useful for traffic junctions, public parks, logistics parks etc to monitor these parameters and maintain integrity of operations.

With availability of RS485 option, we can help integrate the data visibility remotely by deploying third party IoT gateways and AWS.

Specifications
Temperature & Humidity Measuring accuracy	±2%RH (10~90%RH) (at 25℃) ±0.4℃ (at 25℃) (Power supply 24Vdc, operating temperature at 25℃)
PM Sensor	Use laser scattering principle sensors with fan (Warm-up time: <2min, stable running time: 10min)
PM Sensor Measuring Range	0~1000μg/m3
PM2.5 backlight LCD indication	Green:0~15μg/m3 / Blue:16~35μg/m3 / Orange:36μg/m3 (3-color backlight value is programmable)
PM10 backlight LCD indication	Green:0~65μg/m3 / Blue:66~125μg/m3 / Orange:126μg/m3 (3-color backlight value is programmable)
PM Sensor measuring accuracy	±5% μg/m3 value

Features

Output options: up to 1 set of RS-485 Modbus RTU Communicaiton and 1 set of Analog selection
Baud rate: 9600, 19200, 38400, 57600, 115200 bps ․ RS-485 transmission format: N81, N82, E81, O81
RS-485 address: 1~255 ․ RS-485 output response time: <200ms
Temperature and humidity / air visual compensation deviation values can be corrected through the RS-485 communication system and buttons.
Use laser scattering principle sensors for PM2.5 and PM10.
Temperature / Humidity sensing element : CMOS sensor
Analog output options: up to 1 set of 4~20mA or 0~10V output with a specified PM sensor (4 selections)
LCD with 3 backlight colors to indicate concentration levels of PM2.5 or PM10, and the backlight can be factory specified.
3 colors of LCD backlight for corresponding spec: green, blue, orange

Applications

Application of HVAC building environmental ventilation and air-conditioning equipment /
medical institutions / library / laboratory / air-conditioned clean room / breeding farm /
department store and hotel / cinema and mass rapid transit / remote real-time monitoring / parking garage /
indoor air purification system,
Warehouses and Logistics parks etc
