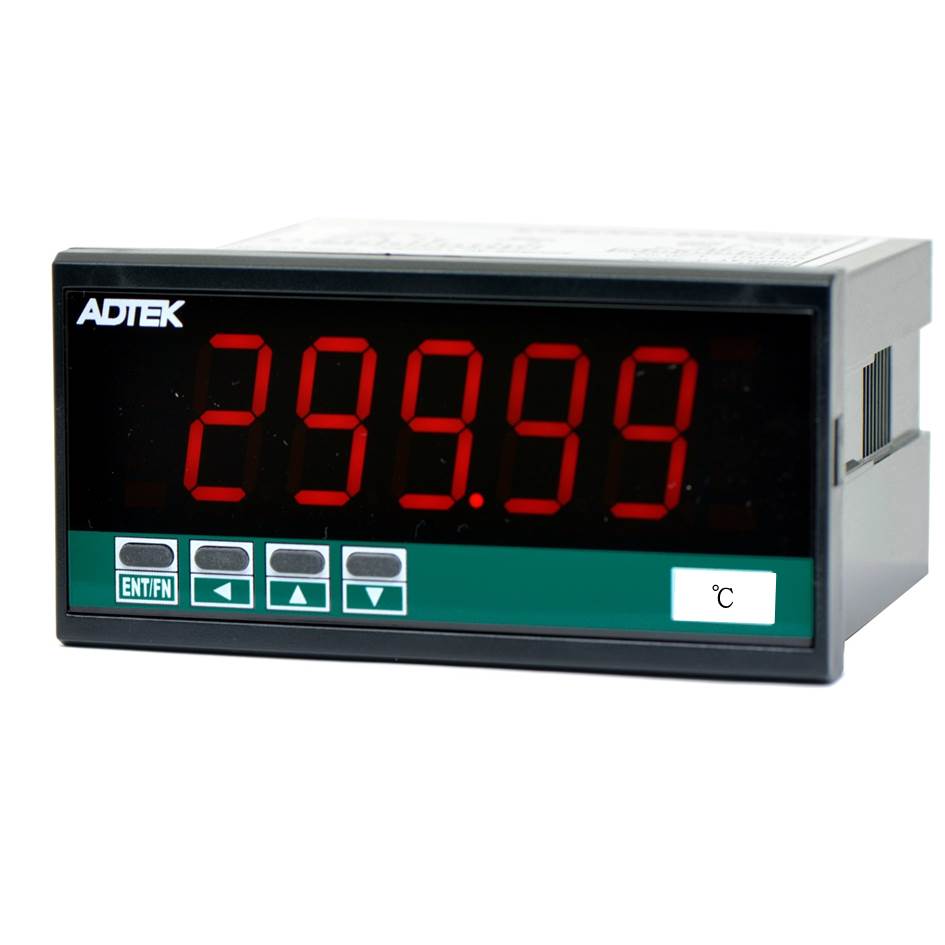

Adtek 4&2/3 Digit Temperature Meter

Model CS2-T · ADTEK

CS2-T is high accuracy 4&2/3 digit temperature meter with options of relay, Analog output and RS485 MODBUS COMM port.

Price on request

ModelCS2-T
BrandADTEK
CategoryControl & Automation

CS2-T Temperature Indicator has been designed with high accuracy measurement, display and communication of Thermocouple or Pt100Ω. They are also building in 4 Relay outputs, 3 External Control Inputs, 1 Analogue output and 1 RS485 (Modbus RTU Mode) interface with versatile functions such as control, alarm, re-transmission and communication for a wide range of machinery and testing equipment application.

Specifications
Measurement Accuracy on Pt100	+/-0.1% of FS
Measurement Accuracy on TC	+/-0.2% of FS
Response Time	<100 ms
Sampling Rate	15 cycles/sec

Baseline Variants
CS2-TP1	Pt100 with -50 to 199 deg C
CS2-TP2	Pt100 with -150 to 800 deg C
CS2-TK1	TC type K with 0 to 1200 deg C
CS2-TJ1	TC type J with 0 to 750 deg C
CS2-TE1	TC type E with 0 to 1000 deg C
CS2-TT1	TC type T with 0 to 400 deg C

Relay Output Options
R2	Two Trip Relays
R4	Four Trip Relays

Analog Output Options
AO1	0 to 10V dc
AO2	4 to 20mA dc

COMM port option
COMM port	RS485 MODBUS

Features

Measuring RTD: Pt100Ω; Thermocouple: K, J, E, T
4 relays can be programmed individual to be a Hi / Lo / Hi Latch / Lo Latch / Go energized with Start Delay / Hysteresis / Energized & De-energized Delay functions, or to be a remote control.
Analogue output and RS 485 communication port in option
3 external control inputs can be programmed individual to be Relative PV (Tare) / PV Hold / Maximum or Minimum Hold / DI (remote monitoring) / Reset for Relay Energized Latch….
CE Approved & RoHS
